Double-Bevel Blades & Holders
Cutting Tools
Blackalloy™ '525'™ Spitfire Cast Alloy Cutting Tools
Cut-Off Blades and Blade Holders
Blackalloy™ cutting tools are world renowned for their ability to maintain a red heat edge and resist high impact operations significantly better than carbide tooling. It may be the combination you need to handle the application that has eluded a solution for so long. They are not for every application, but when high speed tooling dulls quickly and carbide tooling does not hold up to the impact loads, Blackalloy™ '525'™ cast alloy may be the solution. In this day and age where production is so important, you cannot have tooling that requires frequent renewal and/or has unpredictable failures. It is unsurpassed in single point tooling.
Full product details
Blackalloy™ '525'™ Spitfire Cast Alloy Cutting Tools
Cut-Off Blades and Blade Holders
Blackalloy™ cutting tools are world renowned for their ability to maintain a red heat edge and resist high impact operations significantly better than carbide tooling. It may be the combination you need to handle the application that has eluded a solution for so long. They are not for every application, but when high speed tooling dulls quickly and carbide tooling does not hold up to the impact loads, Blackalloy™ "525"™ cast alloy may be the solution. In this day and age where production is so important, you cannot have tooling that requires frequent renewal and/or has unpredictable failures. It is unsurpassed in single point tooling.
- Blade clamps automatically
- No moving parts, no screws
- Absolute rigidity
- Made from one piece of hardened tool steel
- Precision ground for close tolerance
- Blade fully supported over 4" length
- Rapid adjustment of blade
- Minimum changeover time

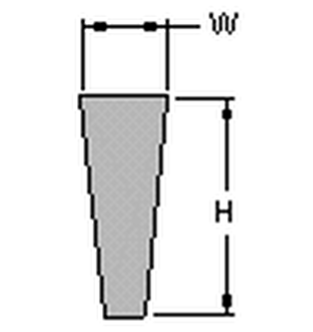

| Model Number | W x H Inches | Length Inches |  |
| DB-50 | 3/32 x 1/2 | 4-1/2 | |
| DB-62 | 1/8 x 5/8 | 4-1/2 | |
| DB-75 | 1/8 x 3/4 | 6 | |
| DB-87 | 1/8 x 7/8 | 6 | |
| DB-100 | 3/16 x 1 | 6 | |
| DB-112 | 3/16 x 1-1/8 | 6 | |
| DB-125 | 1/4 x 1-1/4 | 6 | |
Dimensions in Inches |
|||

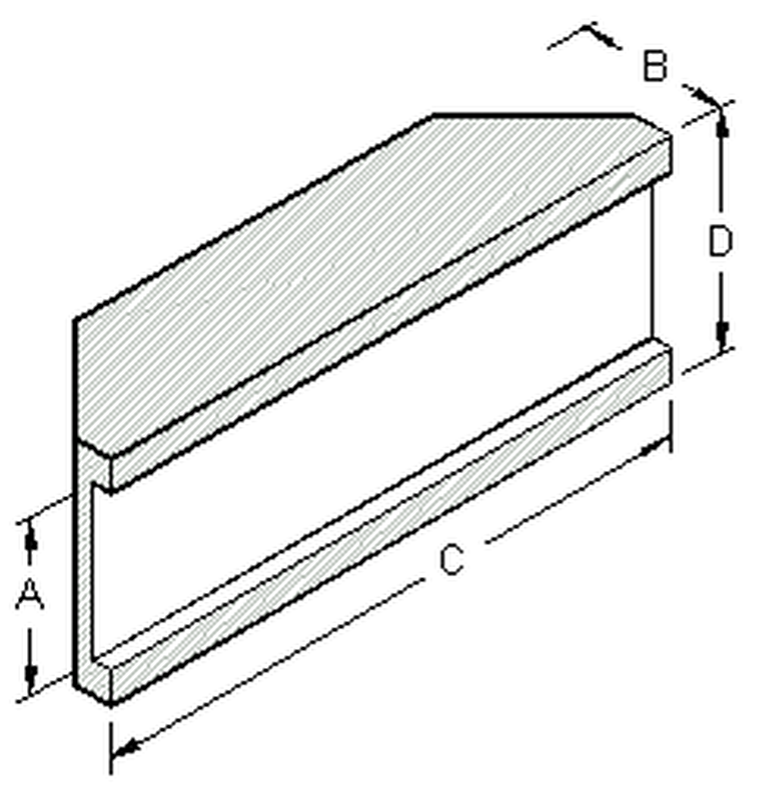

| Model # | Cut-Off Blade Model | A | B | C | D |  |
| BH-50 | DB-50 | 1/2 | 1/2 | 2-1/2 | 11/16 | |
| BH-62 | DB-62 | 5/8 | 5/8 | 4 | 29/32 | |
| BH-75 | DB-75 | 3/4 | 25/32 | 4 | 1-1/8 | |
| BH-87 | DB-87 | 7/8 | 25/32 | 4 | 1-1/4 | |
| BH-100 | DB-100 | 1 | 63/64 | 4 | 1-11/32 | |
| BH-125 | DB-125 | 1-1/4 | 63/64 | 4 | 1-3/4 | |
Dimensions in Inches |
||||||
